The 1769-IF8 module can adapt to the HMI monitoring system of GEHO pumps, with its signal conversion capability, open protocol support, and integration with PLC/HMI platforms being its core. The following are the key reasons:
Core function: Analog signal acquisition and conversion
The key operating parameters of GEHO pumps (especially in the fields of petrochemicals, mining, etc.), such as pressure, flow rate, temperature, and vibration, are usually measured by on-site sensors (transmitters) and output standard 4-20mA current signals.

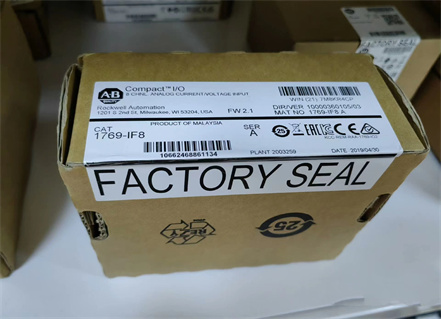

1769-IF8 is an 8-channel analog input module for the Rockwell Automation (Allen Bradley) CompactLogix/CompactGuardLogix PLC system, specifically designed to receive and accurately convert these 4-20mA signals.
Function: It serves as a bridge between the physical world (pump sensor signals) and the digital control system (PLC/HMI), digitizing the real-time operating signals of the pump.
Protocol compatibility and system integration
1769-IF8, as Rockwell's CompactLogix I/O module, seamlessly integrates into the ControlLogix/CompactLogix PLC platform through a backplane or communication adapter (such as 1769-ECR, 1769-SDN).
The PLC program reads the digital data converted by the module, performs logical processing, alarm judgment, historical recording, etc.
HMI (Human Machine Interface) Connection: HMI software (such as Rockwell's FactoryTalk View or other OPC supported HMIs) accesses PLC databases through EtherNet/IP (Rockwell's standard industrial Ethernet protocol) or OPC UA/DA servers (Tags). The PLC database contains data representing the operating status of GEHO pumps read from the 1769-IF8 module.
Therefore, HMI is not directly connected to 1769-IF8, but indirectly, efficiently, and standardizedly obtains data from GEHO pumps through PLC.
